As someone who has spent years working in the manufacturing and casting industries, I’ve seen firsthand how crucial it is to design custom cast parts that not only meet performance and quality standards but also align with production goals and cost constraints. Designing cast parts can seem daunting, especially if you’re new to the process, but when done correctly, it can lead to exceptional results that are both cost-effective and efficient.
In this blog, I’ll share my experience and provide practical advice on how to design custom cast parts that meet both quality and production standards. Whether you’re designing components for the automotive, aerospace, medical, or industrial sectors, the principles of effective cast part design remain the same. From material selection to geometry and tolerances, every decision made during the design process will have an impact on the final product’s performance, manufacturability, and cost.
Let’s dive into how to design cast parts that will not only perform well but also be easy to manufacture, ensuring that you stay within budget and meet deadlines.

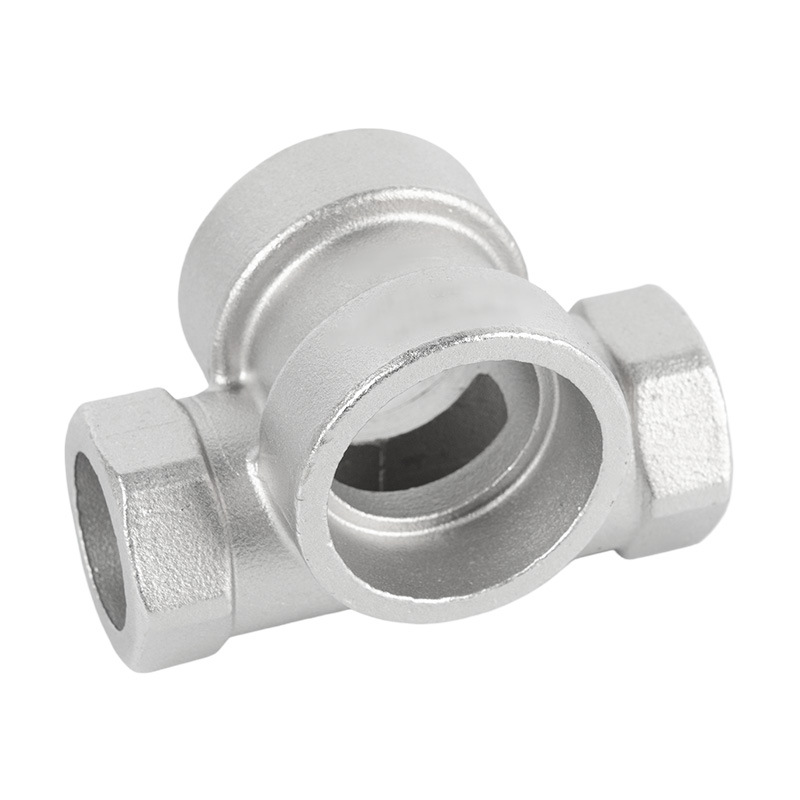

1. Understanding the Casting Process and Its Limitations
Before you start designing custom cast parts, it’s essential to have a solid understanding of the casting process itself. Casting involves pouring molten metal into a mold where it solidifies into the desired shape. It’s one of the oldest manufacturing techniques, but it’s still widely used today due to its ability to produce complex parts with high precision.
There are several types of casting methods used in the industry, including sand casting, die casting, and investment casting. Each method has its own advantages and limitations, so it’s important to know which one is best suited to your application before diving into the design phase.
- Sand Casting: Ideal for large, complex parts. It’s a versatile process that allows for the creation of intricate designs, but the surface finish might not be as smooth as die casting.
- Die Casting: Best suited for high-volume production of smaller, more precise parts, often made of aluminum, zinc, or magnesium. It provides excellent surface finish and dimensional accuracy.
- Investment Casting: Used for parts requiring high precision and complex geometries. Commonly used in aerospace, medical, and high-performance automotive applications.
By understanding the strengths and limitations of each casting method, you can make informed decisions about the design features that will work best for your part and ensure that it can be manufactured with ease and precision.
2. Material Selection: The Foundation of Your Design
Material selection is one of the first and most important decisions in custom casting design. The material you choose will impact the strength, durability, and performance of your part, as well as its cost and ease of manufacturing.
There are several factors to consider when selecting the right material for your casting:
- Strength and Durability: Will the part need to withstand high stresses, temperatures, or corrosion? Materials like cast iron, aluminum alloys, and stainless steel are commonly used for their strength and resistance to wear.
- Weight: In industries like automotive or aerospace, reducing weight is critical for performance and fuel efficiency. Lightweight metals like aluminum or magnesium may be preferred in these cases.
- Cost: Some materials are more expensive than others, and you’ll need to balance performance with budget. For example, aluminum is often more affordable than titanium or other high-strength alloys but may not offer the same performance in extreme conditions.
- Casting Process Compatibility: Not all materials work well with every casting method. For example, high-melting-point alloys like titanium may require investment casting, while aluminum alloys are more suited for die casting or sand casting.
Once you have a clear understanding of the material properties needed for your part, you’ll be better equipped to make the right choice and move forward with the design.

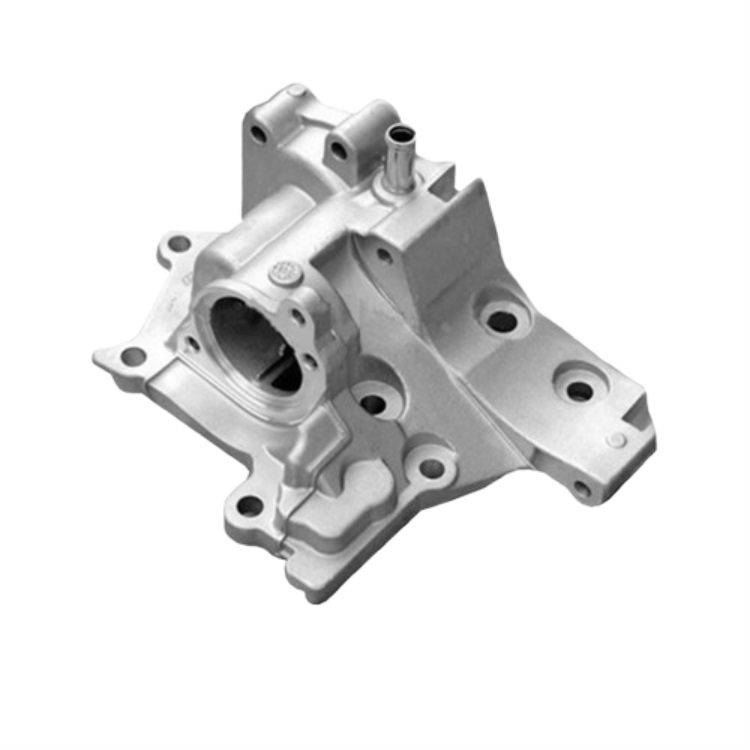

3. Design for Manufacturability: Ensuring Smooth Production
The key to designing custom cast parts is ensuring that your design is not only functional but also manufacturable within the constraints of your casting process. In other words, you need to design with production in mind. This is where the concept of Design for Manufacturability (DFM) comes into play. Here are some key design considerations to keep in mind:
Wall Thickness
One of the most important aspects of a cast part’s design is wall thickness. Uneven or excessive wall thickness can lead to issues like uneven cooling, warping, and porosity. Ideally, your design should have uniform wall thickness to ensure that the molten metal flows evenly and cools consistently.
If the design requires varying thicknesses, try to gradually transition between thick and thin sections to avoid sudden changes that could create weak points or casting defects. It’s also important to remember that thicker walls generally lead to longer cooling times and higher material costs, so maintaining a balance is key.
Draft Angles
When designing custom cast parts, draft angles are a critical feature to consider. A draft angle is a slight taper that is added to vertical surfaces of the part to help it release from the mold more easily. Without proper draft angles, the part may get stuck in the mold, leading to production delays and potential damage to the part.
Draft angles are usually around 1 to 3 degrees, but they may vary depending on the complexity and size of the part. The larger the part, the greater the draft angle required. Including these angles during the design phase will save time and reduce the risk of mold damage or defects.
Core and Cavity Design
If your part requires internal features, such as hollow cavities, you will need to design cores that can be placed inside the mold to create these cavities. Core design is crucial in ensuring the integrity and strength of the part. The core must be positioned correctly and securely within the mold to maintain uniformity in the final part.
It’s important to avoid creating sharp corners or edges inside hollow sections. These areas are prone to stress concentrations and can lead to casting defects like cracks. Designing smooth, rounded internal features will help ensure the strength and longevity of the part.

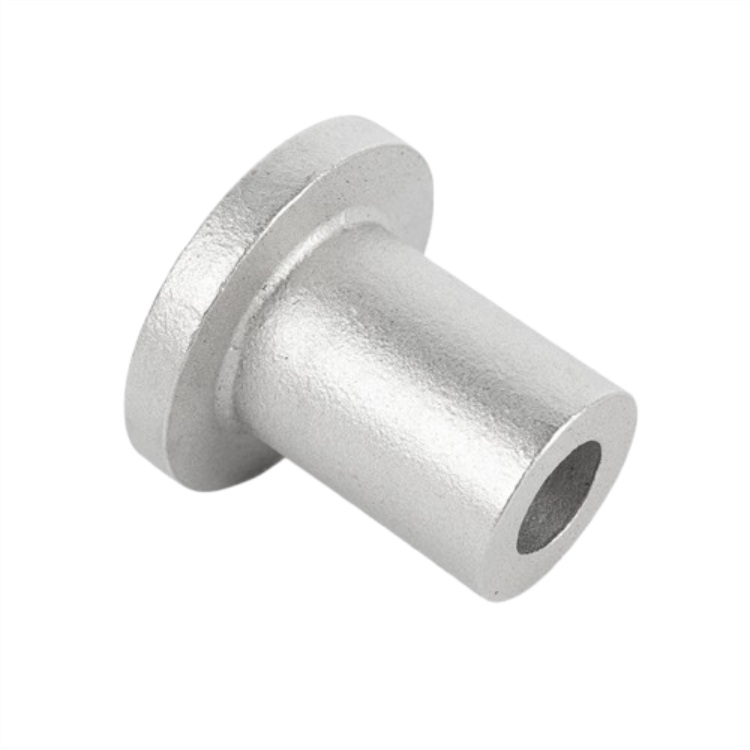

Ribs and Fillets
Adding ribs (small reinforcing features) and fillets (rounded edges) is a great way to enhance the strength of your cast parts while also improving the flow of molten metal during the casting process. Ribs help reinforce weak points, while fillets eliminate sharp corners that can lead to stress fractures.
When designing ribs, make sure they are properly sized and positioned to avoid interfering with the casting process. Fillets should be used at corners to improve both the structural integrity and the flow of molten material.

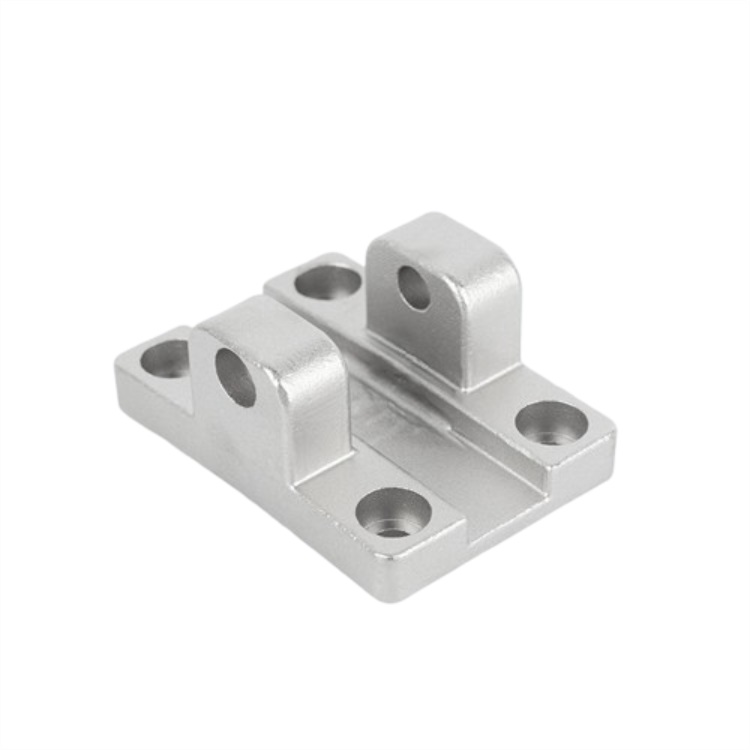

4. Tolerances and Surface Finish
Casting is not as precise as processes like machining, so it’s essential to design your parts with appropriate tolerances. If your part requires very tight tolerances, it might not be suitable for casting, and you may need to opt for an alternative manufacturing method like machining or forging.
That being said, casting offers a reasonable level of accuracy, and many modern casting processes, such as investment casting, can achieve tolerances that are within a few thousandths of an inch. Be sure to discuss your tolerance requirements with the casting manufacturer to ensure that your design can be produced within those limits.
Surface finish is another important consideration. Depending on your application, you may need to specify the level of finish required. For instance, die-cast parts generally have a smooth finish straight out of the mold, while sand-cast parts may need additional processing like grinding or polishing to achieve a smooth surface.
5. Testing and Validation: Ensuring Quality
Once your design is finalized, the next step is to validate it through testing. This process involves creating prototypes or initial castings to test for fit, form, and function. Prototyping helps identify any potential issues with the design before mass production begins, saving you both time and money in the long run.
In addition to physical testing, simulation software can be incredibly helpful in the design phase. Tools like casting simulation software allow you to virtually model the casting process to predict how molten metal will flow, where defects might occur, and how the part will cool. This can give you valuable insight into potential problems and help you make necessary design adjustments before moving forward with production.
6. Collaborate with Experts
Lastly, it’s always a good idea to collaborate with experienced engineers, foundries, or casting suppliers who understand the nuances of the casting process. They can help guide you through the design process, recommend materials and methods, and ensure that your part will meet production standards.
If you’re working with a foundry or casting expert, provide them with detailed specifications, and don’t hesitate to ask for their input. Their expertise can help identify potential problems early in the design process and offer solutions that you might not have considered.
Conclusion: Design for Success
Designing custom cast parts is both an art and a science. It requires a deep understanding of materials, processes, and design principles to create parts that not only meet functional requirements but are also manufacturable at scale and within budget. By considering factors like material selection, wall thickness, draft angles, and testing, you can ensure that your cast parts meet both quality and production standards.
Remember, the key to successful custom casting is designing with the process in mind. By collaborating with experts and using the right tools and techniques, you’ll be well on your way to creating high-quality cast parts that are both cost-effective and reliable.
